    24 Core SM Non Metallic Fiber Optic Cable Overhead Outdoor

    Ask Lasest Price
    Brand Name : Yiyuan
    Certification : ISO 9001;ISO 14001;OHSAS 18001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 500000km/month
    Delivery Time : 30 working days after received your payment
    • Product Details
    • Company Profile

    24 Core SM Non Metallic Fiber Optic Cable Overhead Outdoor

    24 Core SM Non Metallic Fiber Optic Cable Overhead Outdoor

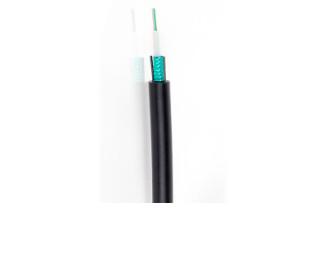

    250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound. The tube is wrapped with a layer of the plastic coated steel strip(PSP). Except the tube filling compound, PSP, water-blocking material and the PE sheath, it also has two steel wires in two sides to enhance the crush resistance and flexibility.


    OPTICAL CHARACTERISTICS
    G652
    50/125μm
    62.5/125μm
    Attenuation
    (+20℃)
    @850 nm
    <=3.0dB/km
    <=3.3dB/km
    @1300 nm
    <=1.0dB/km
    <=1.0dB/km
    @1310 nm
    <=0.36dB/km
    @1550 nm
    <=0.22dB/km
    Bandwidth
    (Class A)
    @850 nm
    >=500 MHz*km
    >=200 MHz*km
    @1300 nm
    >=1000 MHz*km
    >=600 MHz*km
    Numerical Aperture
    0.200+-0.015NA
    0.275+-0.015NA
    Cable cut-off wavelength
    <=1260 nm

    CABLE CHRACTERISTICS

    1.Uni-tube gel-filled construction for superior fiber protection.

    2.Metallic armor to protect cable from rodent attack and mechanical damage.

    3.Embedded steel wire provide desirable tensile strength and crush resistance.

    4.Compact, easy to install.

    5.UV and waterproof design.


    Fiber count
    Nominal
    Diameter
    (mm)
    Nominal
    Weight
    (kg/km)
    Allowable Tensile Load
    (N)
    Allowable Crush Resistance(N/100mm)
    short term
    long term
    short term
    long term
    2~12
    8.0
    90
    1500
    600
    1000
    300
    14~48
    9.0
    110
    1500
    600
    1000
    300

    24 Core SM Non Metallic Fiber Optic Cable Overhead Outdoor24 Core SM Non Metallic Fiber Optic Cable Overhead Outdoor
