    24 Core Sub Duct Fiber Optic Cable Steel Armoured 12 Core 48 Core Outer Sheath

    Ask Lasest Price
    Brand Name : Yiyuan
    Certification : OHSAS 18001, ISO 14001, ISO 9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 500000km/month
    Delivery Time : 30 working days after received your payment
    • Product Details
    • Company Profile

    24 Core Sub Duct Fiber Optic Cable Steel Armoured 12 Core 48 Core Outer Sheath

    24 Core Sub Duct Fiber Optic Cable Steel Armoured 12 Core 48 Core Outer Sheath

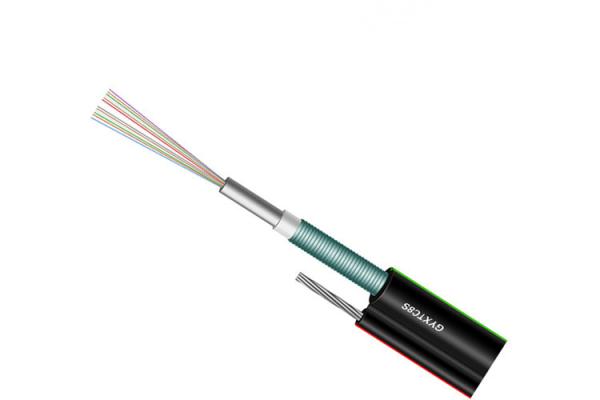

    The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

    Description:

    . Loose tube style ,figure-8 optical fiber cable Jelly compound,optical fiber cable with steel wire messenger wire.

    . Filling compound and water-proof tape.

    . Incorporation steel messenger wire suitable for overhead installation as pole to pole or pole to premises.

    . High strength, tracking-resistant sheath.


    Applications:


    · Usable for aerial installation

    · Long-haul communication systems

    · Junction communication systems

    . Subscriber network systems

    . Local area network systems

    Fiber Colour Code:

    01- Blue 04- Brown 07- Red 10- Purple

    02- Orange 05- Grey 08- Black 11- Pink

    03- Green 06- White 09- Yellow 12- Aqua
    The colour arrangement of optical fiber is specified in the fiber colour code

    S: short term; L: long term; L.T: loose tube

    Crush load: N/100mm; D: cable diameter

    GY: outdoor cable;T: jelly compound; C8: Figure 8 cable

    S: Steel tape + PE outer sheath


    Fiber Colour Code:

    01- Blue 04- Brown 07- Red 10- Purple

    02- Orange 05- Grey 08- Black 11- Pink

    03- Green 06- White 09- Yellow 12- Aqua

    The colour arrangement of optical fiber is specified in the fiber colour code

    S: short term; L: long term; L.T: loose tube

    Crush load: N/100mm; D: cable diameter

    GY: outdoor cable;T: jelly compound; C8: Figure 8 cable

    S: Steel tape + PE outer sheath


    Dimensional Characterstics
    Part
    Number
    Fiber
    Count
    Outside
    Diameter
    (mm)
    Stranded
    Units
    Cable
    Weight
    (kg/km)
    Tensile LoadCrush LoadBend Radius
    S
    (N)
    L
    (N)
    S
    (N)
    L
    (N)
    S
    (N)
    L
    (N)
    GYXTC8Y0809P-BK87.0/13.57*1.0mm11530001000100030020D10D
    GYXTC8Y1209P-BK127.0/13.57*1.0mm11530001000100030020D10D
    GYXTC8Y2409P-BK247.0/13.57*1.0mm11530001000100030020D10D
    Note: GYXTC8Y denotes Figure 8 Central loose tube aerial optical cable ;09 denotes fiber type (09: SM)
    P denotes PE sheath; BK denotes black outer sheath;
    Mechanical & Environmental Characteristics
    ItemCharacteristics
    Operation temperature-20℃~ + 60℃
    Storage temperature-40℃~ + 60℃
    Sheath MaterialP:PE
