Brand Name : | Yiyuan |
Certification : | ISO 9001;ISO 14001;OHSAS 18001 |
Price : | Negotiation |
Payment Terms : | T/T, Western Union |
Supply Ability : | 500000km/month |
Delivery Time : | 30 working days after received your payment |

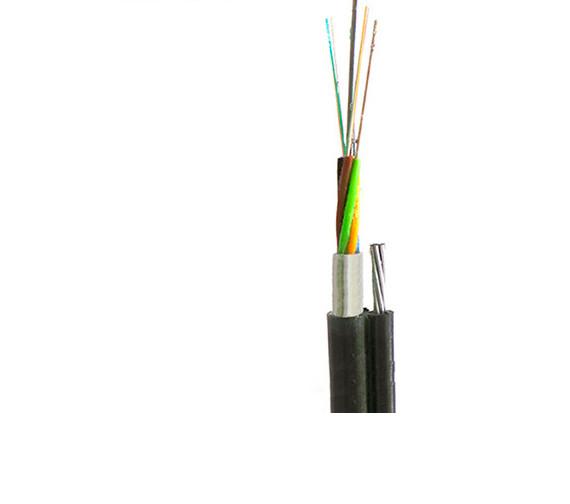

96 Core Armoured Figure 8 Outdoor Aerial Fibre Cable
Description
GYTC8A is a typical self supporting outdoor fiber optic cable with
features of moisture resistance and crush resistance suitable for
aerial application.
The stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Aluminum tape armored and PE outer sheath provide crush resistance and gun shot resistance features. The steel-wire as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.
Both single mode type and multimode types are available. Various
lengths and fiber number can be customized according to customers’
requirements.
Characteristics:
Application
Parameters
Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter /pad diameter (mm) | Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable Weight (kg/km) |
4 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 135 |
6 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 135 |
8 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 135 |
12 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 135 |
24 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 136 |
36 | 1+6 | 6 | 1.7±0.1 | 1.8/1.8 | 1.6±0.1 | 9.4 ±0.5/16.3 ±0.8 | 150 |
48 | 1+5 | 12 | 2.0±0.1 | 1.4/1.4 | 1.6±0.1 | 9.7 ±0.5/16.6 ±0.8 | 146 |
72 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 1.6±0.1 | 10.4 ±0.5/17.3 ±0.8 | 170 |
96 | 1+8 | 12 | 2.0±0.1 | 2.2/3.5 | 1.6±0.1 | 12.0 ±0.5/19.2 ±0.8 | 204 |
![]() |
