18 Core FRP ADSS Fiber Optic Cable Non Metallic Duct Non OHSAS 18001
Description

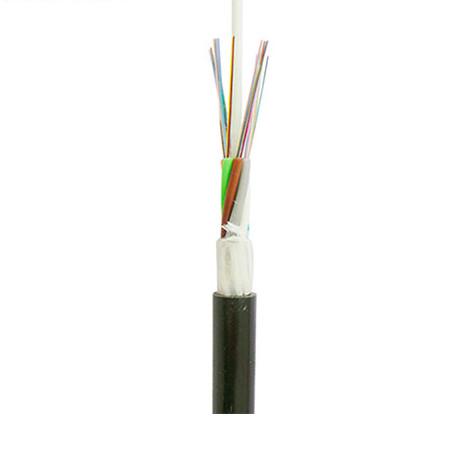

Fiber optic cable GYTA53, 2~288 fibers, central strength member (FRP), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. G652D SM fiber.Detailed specification on your request.
Application
CATV
Local trunk line
Rural communication
Computer networks system
Aerial & conduit/duct application
Standards
Comply with Standard YD/T 901 as well as IEC 60794-1.
Tempeature: Operating /Storage:-40°c +70°c
Paramenters
| Item | Parameters | |
|
Loose tube
|
Material | PBT |
| Color | All colors display | |
|
Filler
|
Material | PE |
| Color | Black | |
| CSM | Material | FRP |
| Inner armoured | Material | Plastic coated aluminum strip |
|
Inner jacket
|
Material | MDPE |
| Color | Black | |
| Outer armoured | Material | Plastic coated steel strip |
|
Outer jacket
|
Material | MDPE |
| Color | Black | |
|
Min. bending radius
|
Static | 12.5 times cable diameter |
| Dynamic | 25 times cable diameter | |
| Repeating bending | Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. | |
| Tensile performance | Short term | 3000N |
| Crush | Short term | 3000N/100mm |
| Torsion | Load:250N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage. | |
Cable Structure
| Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter(mm) | Thickness of Inner jacket(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable Weight(kg/km) |
| 4 | 1+6 | 4 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 191 |
| 6 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 191 |
| 8 | 1+6 | 4 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 191 |
| 12 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 192 |
| 18 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 192 |
| 24 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 192 |
| 30 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 192 |
| 36 | 1+6 | 6 | 2.2±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 14.4 ±0.5 | 192 |
| 48 | 1+6 | 12 | 2.5±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 15.0 ±0.5 | 205 |
| 60 | 1+6 | 12 | 2.5±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 15.0 ±0.5 | 207 |
| 72 | 1+6 | 12 | 2.5±0.1 | 2.6/2.6 | 0.9±0.1 | 1.6±0.1 | 15.0 ±0.5 | 208 |
| 84 | 1+7 | 12 | 2.5±0.1 | 2.6/3.5 | 0.9±0.1 | 1.6±0.1 | 15.9 ±0.5 | 231 |
| 96 | 1+8 | 12 | 2.5±0.1 | 3.0/4.3 | 0.9±0.1 | 1.6±0.1 | 16.8 ±0.5 | 257 |
| 108 | 1+9 | 12 | 2.5±0.1 | 3.0/5.1 | 0.9±0.1 | 1.6±0.1 | 17.6 ±0.5 | 279 |
| 120 | 1+10 | 12 | 2.5±0.1 | 3.0/5.9 | 0.9±0.1 | 1.6±0.1 | 18.4 ±0.5 | 303 |
| 132 | 1+11 | 12 | 2.5±0.1 | 3.0/6.6 | 0.9±0.1 | 1.6±0.1 | 19.1 ±0.5 | 324 |
| 144 | 1+12 | 12 | 2.5±0.1 | 3.0/7.5 | 0.9±0.1 | 1.6±0.1 | 20.0 ±0.5 |
353 |
|
|
